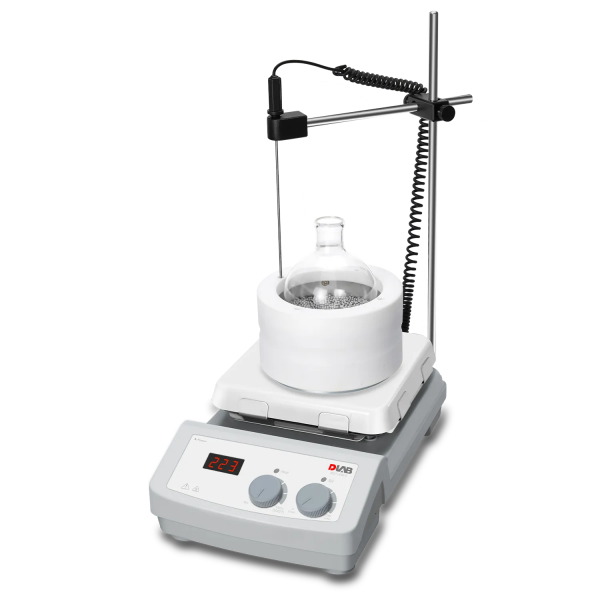

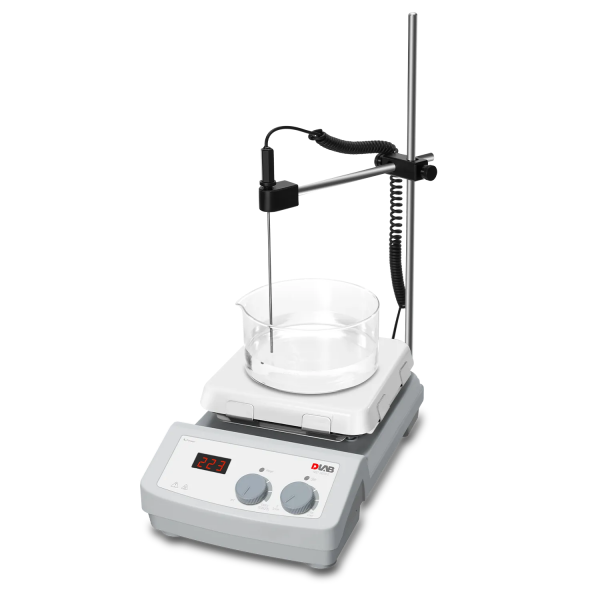

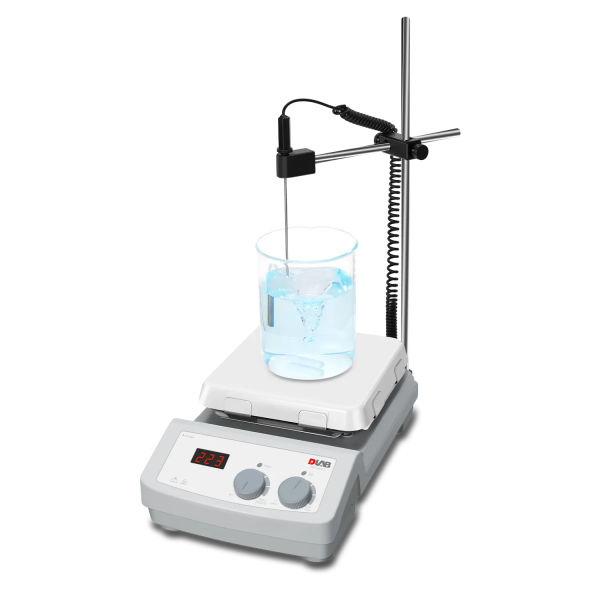

LED Magnetic Hotplate Stirrer With 7’’ Inch Ceramic Plate (MS7-H550-S)
$517.00
DLAB LED Magnetic Hotplate Stirrer With 7’’ Inch Ceramic Plate (MS7-H550-S)(8030122211)
- Product Details
- Description
- Additional information
- More Offers
Catalog No. | 8030122211 |
---|---|
Product Name | LED Magnetic Hotplate Stirrer With 7’’ Inch Ceramic Plate (MS7-H550-S) |
Supplier Name | DLAB Scientific |
Brand Name | DLAB Scientific |
Parameters | Work plate Dimension:184x184mm ( 7 inch ) Work plate material:Glass ceramic Max. stirring quantity [H2O]:10L Speed range:0-1500rpm Speed display:Scale Temperature display:LED Heating temperature range:Room Temp.-550℃, increment 5℃ Temperature control accuracy:±10℃ Temperature display accuracy:±1℃ External temperature sensor:PT1000 (accuracy ±0.2℃) "Hot" warning:50°C Overheating temperature protection:580°C Motor type:Shaded pole motor Stirring positions:1 Max. magnetic bar length:80mm Protection class:IP21 Motor rating input:15W Motor rating output:1.5W Power:1030W Heating output:1000W Voltage,Frequency:100-120V/200-240V,50/60Hz Dimension [WxDxH]:215x360x112mm Weight:4.5KG Permissible ambient temperature:5~40℃ Permissible ambient humidity:80% RH |
Order Offline | Phone: 1-617-401-8149 Fax: 1-617-606-5022 Email: message@sydlabs.com Orleave a message with a formal purchase order (PO) Or credit card. |
Description
8030122211: LED Magnetic Hotplate Stirrer With 7’’ Inch Ceramic Plate (MS7-H550-S)
LED Magnetic Hotplate Stirrer With 7’’ Inch Ceramic Plate (MS7-H550-S):
- LED displays actual temperature & speed
- Built-in PID controller ensures safe heating of the medium with overheating protection
- Maximum heating plate temperature up to 550℃
- Glass ceramic work plate is resistant to corrosion and is easy to clean
- External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
- Digital speed control with maximum range of 1500rpm
- Outstanding brushless DC motor offers more stirring power
- Two knobs enable easy adjustment of speed and temperature
- “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
- Remote function provides PC control and data transmission
Work plate Dimension:184x184mm ( 7 inch )
Work plate material:Glass ceramic
Max. stirring quantity [H2O]:10L
Speed range:0-1500rpm
Speed display:Scale
Temperature display:LED
Heating temperature range:Room Temp.-550℃, increment 5℃
Temperature control accuracy:±10℃
Temperature display accuracy:±1℃
External temperature sensor:PT1000 (accuracy ±0.2℃)
“Hot” warning:50°C
Overheating temperature protection:580°C
Motor type:Shaded pole motor
Stirring positions:1
Max. magnetic bar length:80mm
Protection class:IP21
Motor rating input:15W
Motor rating output:1.5W
Power:1030W
Heating output:1000W
Voltage,Frequency:100-120V/200-240V,50/60Hz
Dimension [WxDxH]:215x360x112mm
Weight:4.5KG
Permissible ambient temperature:5~40℃
Permissible ambient humidity:80% RH
Please remember our product information:LED Magnetic Hotplate Stirrer With 7’’ Inch Ceramic Plate (MS7-H550-S) catalog number: 8030122211DLAB Scientific
Additional information
Ship from Country | USA |
---|---|
Model | MS7-H550-S |
