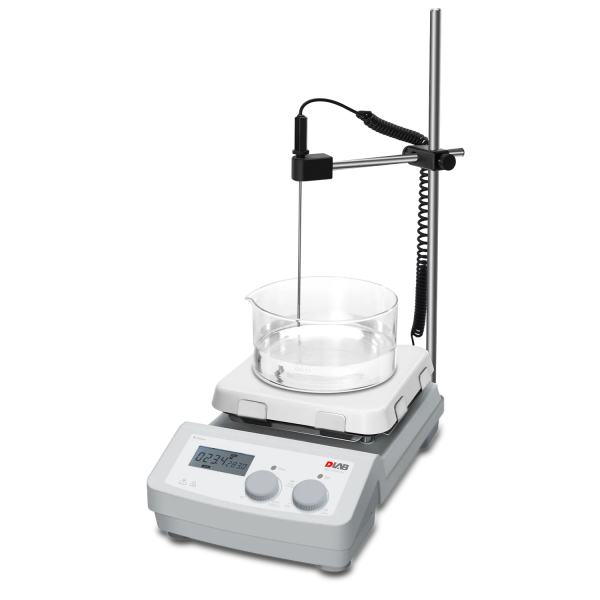

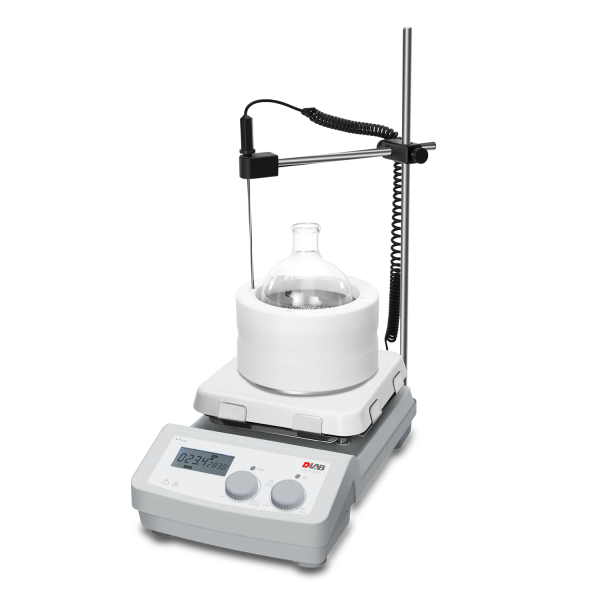

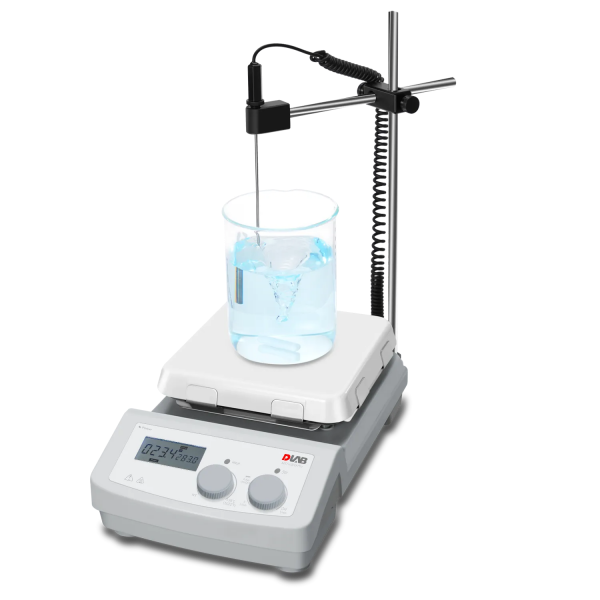

LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (MS7-H550-Pro)
$652.00
DLAB LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (MS7-H550-Pro)(8030122111)
- Product Details
- Description
- Additional information
- More Offers
| Catalog No. | 8030122111 |
|---|---|
| Product Name | LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (MS7-H550-Pro) |
| Supplier Name | DLAB Scientific |
| Brand Name | DLAB Scientific |
| Parameters | Work plate Dimension:184x184mm ( 7 inch ) Work plate material:Glass ceramic Max. stirring quantity [H2O]:20L Speed range:100-1500rpm，resolution±1rpm Speed display:LCD Temperature display:LCD Heating temperature range:Room Temp.-550℃, increment 1℃ Temperature control accuracy:±1℃(<100℃) ±1%(>100℃) Temperature display accuracy:±0.1℃ External temperature sensor:PT1000(accuracy ±0.2℃) "Hot" warning:50℃ Overheating temperature protection:580℃ Motor type:Brushless DC motor Stirring positions:1 Max. magnetic bar length:80mm Data connector:RS232 Protection class:IP21 Motor rating input:18W Motor rating output:10W Power:1050W Heating output:1000W Voltage,Frequency:100-120V/200-240V，50/60Hz Dimension [WxDxH]:215x360x112mm Weight:5.3kg Permissible ambient temperature:5-40℃ Permissible ambient humidity:80% RH |
| Order Offline | Phone: 1-617-401-8149 Fax: 1-617-606-5022 Email: message@sydlabs.com Orleave a message with a formal purchase order (PO) Or credit card. |
Description
8030122111: LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (MS7-H550-Pro)
LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (MS7-H550-Pro):
- LCD displays actual temperature & speed
- Built-in PID controller ensures safe heating of the medium with overheating protection
- Maximum heating plate temperature up to 550℃
- Glass ceramic work plate is resistant to corrosion and is easy to clean
- External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
- Digital speed control with maximum range of 1500rpm
- Outstanding brushless DC motor offers more stirring power
- Two knobs enable easy adjustment of speed and temperature
- “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
- Remote function provides PC control and data transmission
Work plate Dimension:184x184mm ( 7 inch )
Work plate material:Glass ceramic
Max. stirring quantity [H2O]:20L
Speed range:100-1500rpm，resolution±1rpm
Speed display:LCD
Temperature display:LCD
Heating temperature range:Room Temp.-550℃, increment 1℃
Temperature control accuracy:±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy:±0.1℃
External temperature sensor:PT1000(accuracy ±0.2℃)
“Hot” warning:50℃
Overheating temperature protection:580℃
Motor type:Brushless DC motor
Stirring positions:1
Max. magnetic bar length:80mm
Data connector:RS232
Protection class:IP21
Motor rating input:18W
Motor rating output:10W
Power:1050W
Heating output:1000W
Voltage,Frequency:100-120V/200-240V，50/60Hz
Dimension [WxDxH]:215x360x112mm
Weight:5.3kg
Permissible ambient temperature:5-40℃
Permissible ambient humidity:80% RH
Please remember our product information:LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (MS7-H550-Pro) catalog number: 8030122111DLAB Scientific
Additional information
| Ship from Country | USA |
|---|---|
| Model | MS7-H550-Pro |
