Cell Electroporation Large-scale Model SLT

Catalog No.	11-0104
Product Name	Cell Electroporation Large-scale Model SLT
Supplier Name	CELETRIX LLC
Brand Name	Celetrix
Summary	Cell electroporation large-scale model SLT (11-0104) is a unique electroporation machine for large scale protein transient production in CHO cells: 8 ml to 400 ml. It is simple and useful for recombinant antibody transient production by CHO cells. Keywords: antibody transient production, cell electroporation, CHO chemical transfection, CHO electroporation transfection, CHO electroporation transient production, CHO transient production, antibody transient production in CHO, scalable CHO cell transfection, transient gene expression (TGE).
Shipping	The cell electroporation large-scale model SLT (11-0104) is shipped at ambient temperature.
Stability & Storage	The cell electroporation large-scale model SLT (11-0104) is stable at room temperature.
Note	Products will be shipped from the warehouse in USA. Promotion is running from time to time. Welcome to send a request for quote to message@sydlabs.com.
Order Offline	Syd Labs, Inc. 4 Avenue E, Hopkinton, MA 01748 USA. Phone: 1-617-401-8149 Fax: 1-617-606-5022 Email: message@sydlabs.com.

Description

11-0104: Cell Electroporation Large-scale Model SLT

1、The largest scale (10 ml electroporation tube): 2x10E9 CHO cells per electroporation transfection for 400 ml CHO transient production; the smallest scale (0.2 ml electroporation tube): 4x10E7 CHO cells per electroporation transfection for 8 ml CHO transient production.
2、The same efficiency/viability as small scale models: only 10-20% CHO cells are dead after electroporation.
3、Preset program with single adjustable parameter; no need for custom programming.
4、For 200 ul, 1 ml, 5 ml, and 10 ml electroporation tubes.
5、Electro cell fusion add-on available for hybridoma

Celetrix electroporation technology enables high titer transient antibody production in CHO cells for R&D, toxicology studies, raw material manufacturing for IVD and research reagents, and beyond. Before introduction of Celetrix electroporation technology, most scientists use HEK293 cells to do protein and antibody transient production because the chemical transfection method for CHO cells is either low efficient or too costly if the ExpiCHO system is used, and the other CHO electroporation method for transient production is either low volume (100 ul) or too costly if the Maxcyte system is used. However, the industry prefers transient production using CHO cells if available, especially the volume in the range of 4 ml to a few liters.

Celetrix electroporation model SLT enables scalable transient protein production in CHO cells. The yields from 8 ml to 400 ml CHO transient production using 200 ul, 1 ml, 5 ml, and 10 ml electroporation are consistent because the principle is the same. The whole process is easy and convenient: CHO cells are spun down, resuspended with electroporation solution, and after 1-click and 2-second electroporation, transferred to CHO cell culturing media.

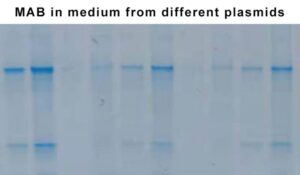

The yield of transient production in CHO cells using the cell electroporation model SLT is much higher than the other methods. The yield from transient gene expression (TGE) can easily reach 1 g/L for trastuzumab after 14-day cell culturing of the original 2x10E9 CHO cells in our hands.

In addition to DNA, the cell electroporation model SLT can be used for electroporation of RNA, siRNA, and proteins to mammalian cells including CHO cells.

There is integrated oscilloscope, electrical current pulse display on the cell electroporation model SLT.

The electroporation kits for the cell electroporation large-scale model SLT (11-0104):

10 ml: Electroporation kits（5 ml and 10 ml）, catalog No. 1225 (20 tubes，with buffer 105 RT)

5 ml: Electroporation kits（5 ml and 10 ml）, catalog No. 1228 (20 tubes，with buffer 105 RT)

1 ml: Electroporation kits（600 ul and 1000 ul）, catalog No. 1213B (50 tubes，with buffer 105 RT) or 1213 (48 tubes，with buffer 103)

200 ul: Electroporation kits（20 ul to 200 ul）, catalog No. 1201 (48 tubes，with buffer 103 and tips)

Celetrix electroporation machines:

Cell electroporation basic model SP100, catalog No. 11-0103, simplified single pulse for all cell types; for 20 ul, and 100 ul electroporation tubes

Cell electroporation upgrade model LE+, catalog No. 11-0101, new cell line mode and PBMC mode. for 20 ul, 100 ul, 120 ul, and 200 ul electroporation tubes.

Cell electroporation upgrade model EX+, catalog No. 11-0106, new cell line mode and PBMC mode. for 20 ul, 100 ul, 120 ul, 200 ul, 600 ul, and 1 ml electroporation tubes.

Cell electroporation large-scale model SLT, catalog No. 11-0104, for 200 ul, 1 ml, 5 ml, and 10 ml electroporation tubes.

Cell electroporation upgrade model EX+ with the electrofusion function, catalog No. 11-0106F, for 20 ul, 100 ul, 120 ul, 200 ul, 400 ul, 600 ul, and 1 ml electroporation tubes. Model EX+ and Model SLT can be equipped with optional fusion accessories for hybridoma generation. Mouse spleen cells can be fused with myeloma cells such as SP2/0 and P3X63Ag8 with high efficiency.

UHV Transformer (Ultra High Voltage), catalog No. 11-0201, bacteria cells: 20 ul, 100 ul, and 600 ul electroporation tubes; yeast cells: 20 ul, 100 ul, 200 ul, and 1000 ul electroporation tubes.

UHV-Plus (Ultra High Voltage), catalog No. 11-0202, bacteria cells: 20 ul, 100 ul, and 600 ul electroporation tubes; yeast cells: 20 ul, 100 ul, 200 ul, and 1000 ul electroporation tubes; mammalian cells: 20 ul and 200 ul electroporation tubes.

Large scale antibody production with Celetrix Cell Electroporation Large-scale Model SLT
Model SLT (Single Large Tube) 10ml electroporator can electroporate 2x10E9CHO cells instantly for 400ml Fed-batch culture to reach g/L antibody expression level in 7 days. Manually processing 5 tubes for 2L Fed-batch culture would take only about 5 minutes.

Model SLT also supports 200ul and 1ml electroporation tubes for smaller scale testing. It can also be equipped with cell fusion accessories for hybridoma generation.
Model EX+ electroporator can process 1ml tubes for 2×108 CHO cells for 40ml Fed-batch culture to harvest about 40 mg antibody. It is also suitable for stable pool generation and high expression clone screening.

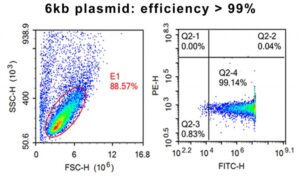

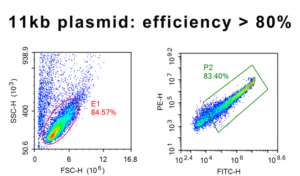

Compared to flow electroporation devices on the market, single large tubes run much faster and there is no efficiency loss suffered by flow electroporation. Both small scale and large scale Celetrix electroporators can reach 99% efficiency on CHO cells with small plasmids and over 80% efficiency with 11kb larger plasmids.

For even larger production scales much more than gram quantity, we recommend the stable pool method. Starting from 10ml electroporation, a stable expression pool can be generated in 10-14 days and it can be frozen and thawed for higher and more reproducible production.

Questions and Answers about CHO electroporation transfection transient production:

Questions: What is the problem with transient transfection to CHO cells?

Answers: Both chemical transfection and electroporation-based transfection methods have been tried to improve the efficiency and yield of protein transient production in CHO cells. So far, the efficiency of most reagents and kits is low for chemical transfection method for CHO cells; the exception is the ExpiCHO system. However, the cost of the ExpiCHO system is higher compared with the other reagents and kits in the market. The volume of most CHO electroporation systems for transient production is low (100 ul); the exceptions are the Maxcyte system and the SLT system. However, the cost of the Maxcyte system is higher compared with our CHO electroporation model SLT for transient production and the consumables. The SLT system is the most economic solution for higher titer antibody transient production in the scale from 4 ml to a few liters.

Questions: Can the electroporation model SLT be used for stable transfection in addition to transient transfection?

Answers: What results in the difference between transient transfection and stable transfection? Transient transfection exerts a temporary influence on cells because the external DNA fragments are not integrated to the host genome, whereas stable transfection leads to permanent genetic changes, by DNA integration into the host genome, that are usually passed on to future cell progeny. The plasmid vectors used make the major difference. The electroporation machine SLT can also be used to optimize CHO stable transfection.

Questions: Has anyone used your electroporation machine for antibody transient production in CHO cells?

Answers: Sure. Since its introduction to the market in 2022, almost all well-known CRO companies in China have purchased and used the electroporation machine SLT for recombinant antibody transient production in CHO cells. More and more CRO and biotech clients in the USA and Europe have started to use the machine and consumables for CHO electroporation transfection.

Questions: Can the electroporation model SLT be used for transfection to other mammalian cells?

Answers: Sure. But you may consider the other electroporation models for different applications from antibody transient production depending on its electroporation volume.

Please remember our product information: Cell electroporation large-scale model SLT catalog number: 11-0104 Celetrix.

Additional information

Ship from Country	USA
Size	1 Set
