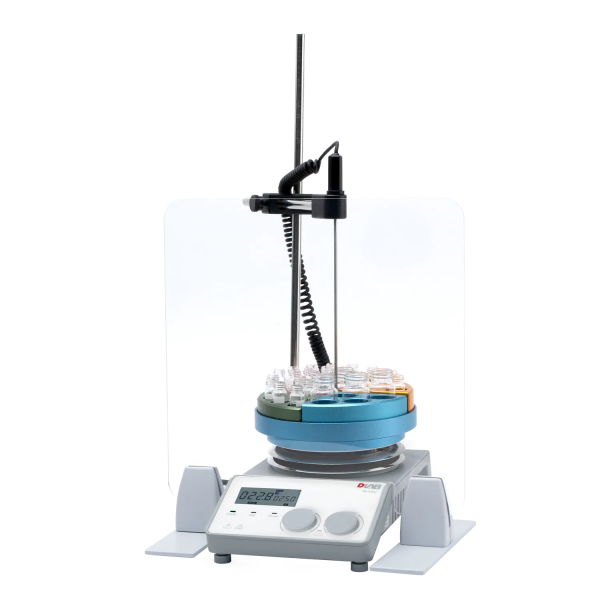

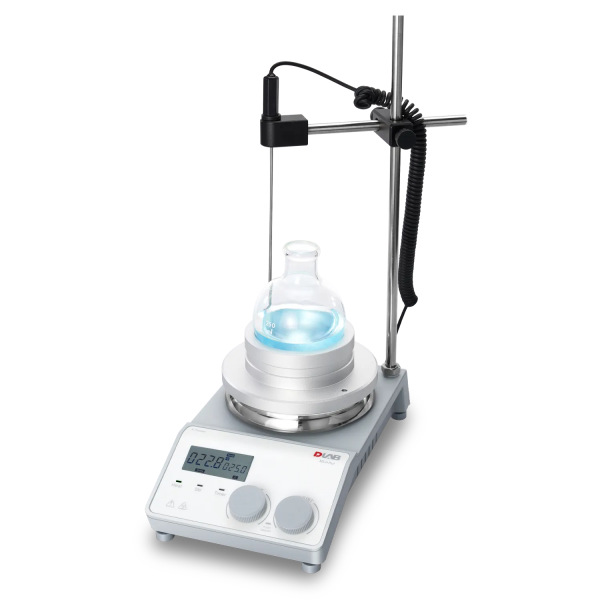

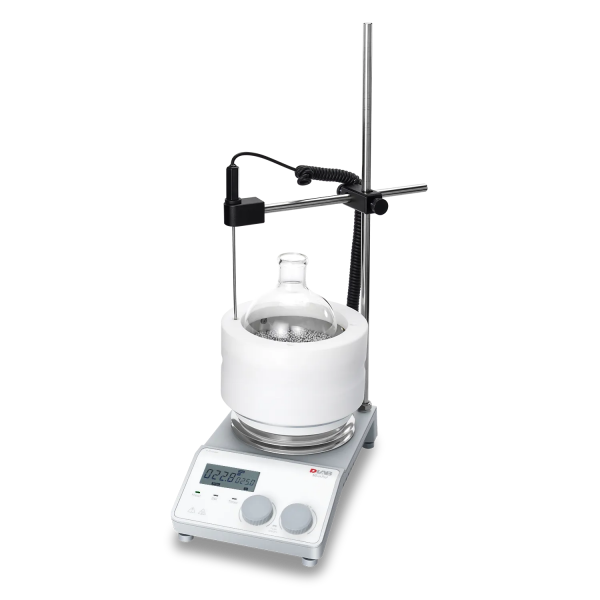

LCD Digital Magnetic Hotplate Stirrer (MS-H-ProA)
$504.00
DLAB LCD Digital Magnetic Hotplate Stirrer (MS-H-ProA) (8060221110)
- Product Details
- Description
- Additional information
- More Offers
| Catalog No. | 8060221110 |
|---|---|
| Product Name | LCD Digital Magnetic Hotplate Stirrer (MS-H-ProA) |
| Supplier Name | DLAB Scientific |
| Brand Name | DLAB Scientific |
| Parameters | Work plate Dimension：Ø135mm（5 inch） Work plate material：Aluminum cover with ceramic coating Max. stirring quantity [H2O]：20L Speed range：100-1500rpm Speed display：LCD Temperature display：LCD Heating temperature range：Room temp.-340℃，increment 1℃ Temperature control accuracy：±1℃(<100℃) ±1%(>100℃) Temperature display accuracy：±0.1℃ External temperature sensor：PT1000 ( accuracy±0.2℃ ) "Hot" warning：50℃ Overheating temperature protection：420℃ Motor type：Brushless DC motor Stirring positions：1 Max. magnetic bar length：80mm Data connector：RS232 Timer function：- Protection class：IP21 Motor rating input：18W Motor rating output：10W Power：650W Heating output：600W Voltage,Frequency：100-120V/200-240V，50/60Hz Dimension [WxDxH]：280×160×100mm Weight：2.8kg Permissible ambient temperature：5-40℃ Permissible ambient humidity：80% RH |
| Order Offline | Phone: 1-617-401-8149 Fax: 1-617-606-5022 Email: message@sydlabs.com Orleave a message with a formal purchase order (PO) Or credit card. |
Description
8060221110: LCD Digital Magnetic Hotplate Stirrer (MS-H-ProA)
LCD Digital Magnetic Hotplate Stirrer (MS-H-ProA):
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistantperformance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
Work plate Dimension：Ø135mm（5 inch）
Work plate material：Aluminum cover with ceramic coating
Max. stirring quantity [H2O]：20L
Speed range：100-1500rpm
Speed display：LCD
Temperature display：LCD
Heating temperature range：Room temp.-340℃，increment 1℃
Temperature control accuracy：±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy：±0.1℃
External temperature sensor：PT1000 ( accuracy±0.2℃ )
“Hot” warning：50℃
Overheating temperature protection：420℃
Motor type：Brushless DC motor
Stirring positions：1
Max. magnetic bar length：80mm
Data connector：RS232
Timer function：–
Protection class：IP21
Motor rating input：18W
Motor rating output：10W
Power：650W
Heating output：600W
Voltage,Frequency：100-120V/200-240V，50/60Hz
Dimension [WxDxH]：280×160×100mm
Weight：2.8kg
Permissible ambient temperature：5-40℃
Permissible ambient humidity：80% RH
Please remember our product information:LCD Digital Magnetic Hotplate Stirrer (MS-H-ProA) catalog number: 8060221110 DLAB Scientific
Additional information
| Ship from Country | USA |
|---|---|
| Model | MS-H-ProA |
