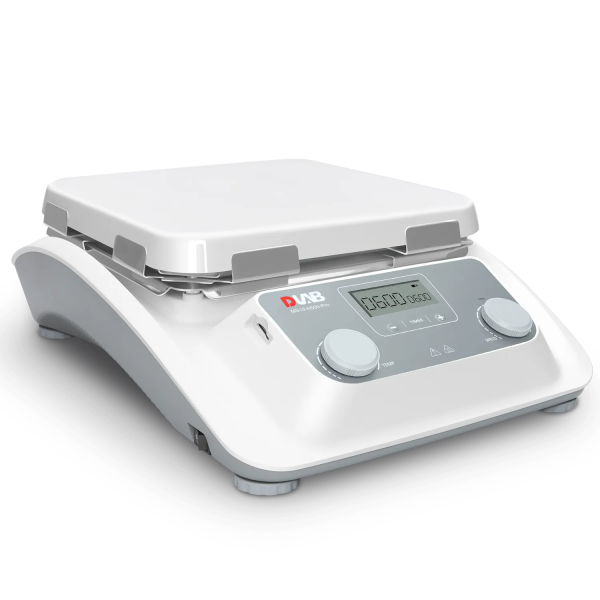

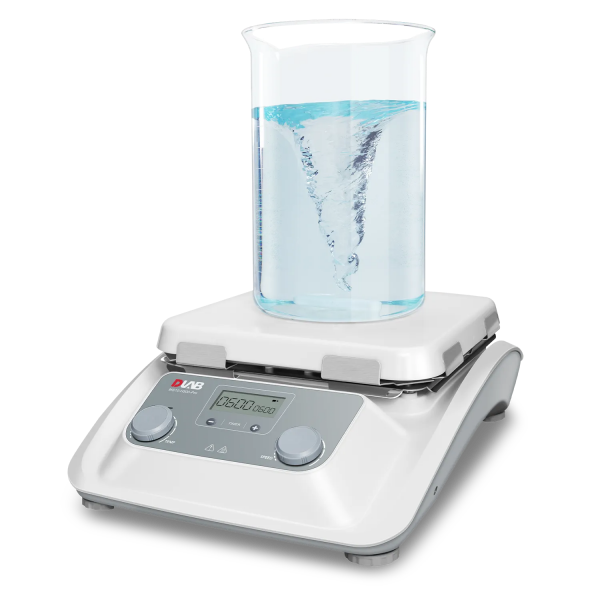

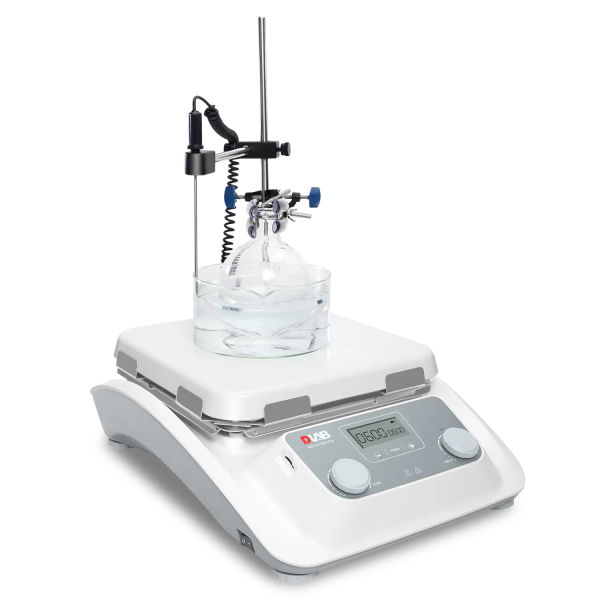

LCD Digital 10’’ Square Hotplate Magnetic Stirrer (MS10-H500-Pro)
$861.00
DLAB LCD Digital 10’’ Square Hotplate Magnetic Stirrer (MS10-H500-Pro)(8030132117)
- Product Details
- Description
- Additional information
- More Offers
| Catalog No. | 8030132117 |
|---|---|
| Product Name | LCD Digital 10’’ Square Hotplate Magnetic Stirrer (MS10-H500-Pro) |
| Supplier Name | DLAB Scientific |
| Brand Name | DLAB Scientific |
| Parameters | Work plate Dimension:254x254mm(10 inch) Work plate material:Glass ceramic Max. stirring quantity [H2O]:30L Speed range:100-1500rpm，resolution±1rpm Speed display:LCD Temperature display:LCD Heating temperature range:Room Temp.-500℃, increment 1℃ Temperature control accuracy:±1℃(<100℃) ±1%(>100℃) Temperature display accuracy:±0.1℃ rExternal temperature sensor:PT1000(accuracy ±0.2℃) "Hot" warning:50℃ Overheating temperature protection:540℃ Motor type:Brushless DC motor Stirring positions:1 Max. magnetic bar length:80mm Data connector:SD card Timer function:1min-99h59min Protection class:IP21 Motor rating input:18W Motor rating output:10W Power:1400W Heating output:1350W Voltage,Frequency:100-120V/200-240V，50/60Hz Dimension [WxDxH]:328x424x138mm Weight:7.2kg Permissible ambient temperature:5-40℃ Permissible ambient humidity:80% RH |
| Order Offline | Phone: 1-617-401-8149 Fax: 1-617-606-5022 Email: message@sydlabs.com Orleave a message with a formal purchase order (PO) Or credit card. |
Description
8030132117: LCD Digital 10’’ Square Hotplate Magnetic Stirrer (MS10-H500-Pro)
LCD Digital 10’’ Square Hotplate Magnetic Stirrer (MS10-H500-Pro):
- Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
- LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy
- at ±0.2°C
- Digital speed control of 100 -1500rpm
- Max. heating plate temperature 500℃
- The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
- Data connector : The SD card also records the instrument’s running data in real time.
- Timing function: the running time of the instrument can be set.
Work plate Dimension:254x254mm(10 inch)
Work plate material:Glass ceramic
Max. stirring quantity [H2O]:30L
Speed range:100-1500rpm，resolution±1rpm
Speed display:LCD
Temperature display:LCD
Heating temperature range:Room Temp.-500℃, increment 1℃
Temperature control accuracy:±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy:±0.1℃
External temperature sensor:PT1000(accuracy ±0.2℃)
“Hot” warning:50℃
Overheating temperature protection:540℃
Motor type:Brushless DC motor
Stirring positions:1
Max. magnetic bar length:80mm
Data connector:SD card
Timer function:1min-99h59min
Protection class:IP21
Motor rating input:18W
Motor rating output:10W
Power:1400W
Heating output:1350W
Voltage,Frequency:100-120V/200-240V，50/60Hz
Dimension [WxDxH]:328x424x138mm
Weight:7.2kg
Permissible ambient temperature:5-40℃
Permissible ambient humidity:80% RH
Please remember our product information:LCD Digital 10’’ Square Hotplate Magnetic Stirrer (MS10-H500-Pro) catalog number: 8030132117DLAB Scientific
Additional information
| Ship from Country | USA |
|---|---|
| Model | MS10-H500-Pro |
