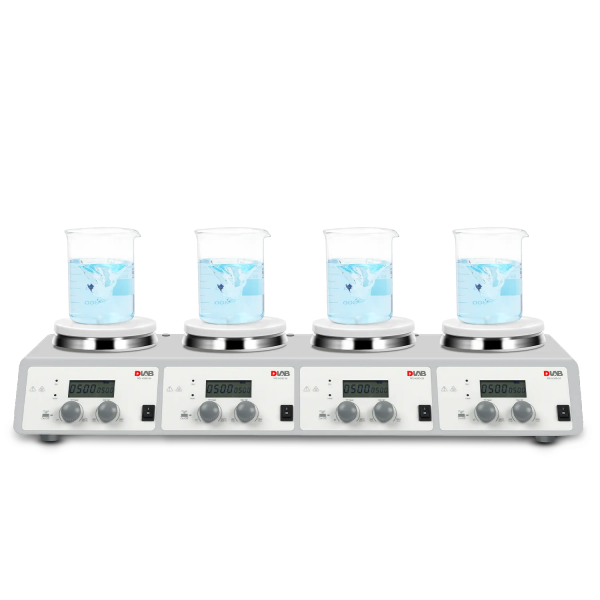

4-Channel LCD Digital Hotplate Magnetic Stirrer (MS-H340-S4)
$1,562.00
DLAB 4-Channel LCD Digital Hotplate Magnetic Stirrer (MS-H340-S4) (8030271110)
- Product Details
- Description
- Additional information
- More Offers
Catalog No. | 8030271110 |
---|---|
Product Name | 4-Channel LCD Digital Hotplate Magnetic Stirrer (MS-H340-S4) |
Supplier Name | DLAB Scientific |
Brand Name | DLAB Scientific |
Parameters | Work plate Dimension:Ø 135mm(5inch) x 4 Work plate material:Stainless steel with ceramic coating Max. stirring quantity [H2O]:10L x 4 Speed range:200-1500rpm Speed display:LCD Temperature display:LCD Heating temperature range:25-340℃ Temperature display accuracy:±0.1℃ External temperature sensor:PT1000( accuracy±0.2℃ ) Overheating temperature protection:420℃ Motor type:Brushless DC motor Stirring positions:4 Max. magnetic bar length:40mm Protection class:IP20 Motor rating input:1.8W x 4 Power:515W x 4 Heating output:500W x 4 Voltage,Frequency:100-120V/200-240V,50/60Hz Dimension [WxDxH]:698x270x128mm Weight:9.5kg Permissible ambient temperature:5-40℃ Permissible ambient humidity:80% RH |
Order Offline | Phone: 1-617-401-8149 Fax: 1-617-606-5022 Email: message@sydlabs.com Orleave a message with a formal purchase order (PO) Or credit card. |
Description
8030271110: 4-Channel LCD Digital Hotplate Magnetic Stirrer (MS-H340-S4)
4-Channel LCD Digital Hotplate Magnetic Stirrer (MS-H340-S4) :
- Independent heating and stirring control for each position
- LCD display shows real-time temperature and speed
- PID controller ensures a precise and stable heating process (maximum temperature up to 340℃)
- Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
- External temperature sensor (PT1000) with accuracy 0.2℃
- Overheating protection temperature at 420℃
- Stainless steel work plate with ceramic coating provides good chemical resistance
- Wide variety of accessories available to choose from
Work plate Dimension:Ø 135mm(5inch) x 4
Work plate material:Stainless steel with ceramic coating
Max. stirring quantity [H2O]:10L x 4
Speed range:200-1500rpm
Speed display:LCD
Temperature display:LCD
Heating temperature range:25-340℃
Temperature display accuracy:±0.1℃
External temperature sensor:PT1000( accuracy±0.2℃ )
Overheating temperature protection:420℃
Motor type:Brushless DC motor
Stirring positions:4
Max. magnetic bar length:40mm
Protection class:IP20
Motor rating input:1.8W x 4
Power:515W x 4
Heating output:500W x 4
Voltage,Frequency:100-120V/200-240V,50/60Hz
Dimension [WxDxH]:698x270x128mm
Weight:9.5kg
Permissible ambient temperature:5-40℃
Permissible ambient humidity:80% RH
Please remember our product information:4-Channel LCD Digital Hotplate Magnetic Stirrer (MS-H340-S4) catalog number:8030271110 DLAB Scientific
Additional information
Ship from Country | USA |
---|---|
Model | MS-H340-S4 |
